New - Anern Wall Mounted Lithium Battery

New - Anern Wall Mounted Lithium Battery

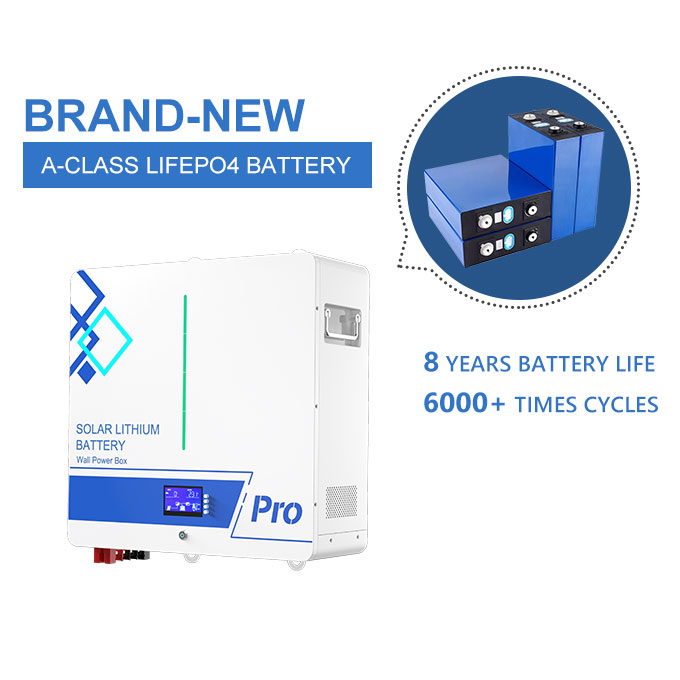

AN-LPB-Npro series solar lithium battery is a lithium iron phosphate energy storage product with an innovative wall-mounted design. The product achieves convenient installation and space optimization through modular structure design. It is equipped with an industrial-grade intelligent battery management system (BMS) and a high-efficiency processing chip to fully meet the load requirements under continuous charging and discharging scenarios. It is also equipped with an LED indicator light that can display different working modes and abnormal alarms in real time.


Anern Wall Mounted Lithium Battery for Sale

Anern Wall Mounted Lithium Battery Parameters

ModelLPB-N-24100LPB-N-24200LPB-N-48100LPB-N-48200
Capacity100AH200AH100AH200AH
Voltage25.6V25.6V51.2V51.2V
Energy storage (Kwh)2.56Kwh5.12Kwh5.12Kwh10.24Kwh
Voltage Working Range (V)22.4-29.2V22.4-29.2V44.8-58.4V44.8-58.4V
Max Charge Current100A150A100A150A
Max Discharge Current100A150A100A150A
Size (cm)485*300*179mm485*475*180mm485*475*180mm796*485*180mm
IP GradeIP54
CertificationsCE, ROHS, UN38.3, MSDS

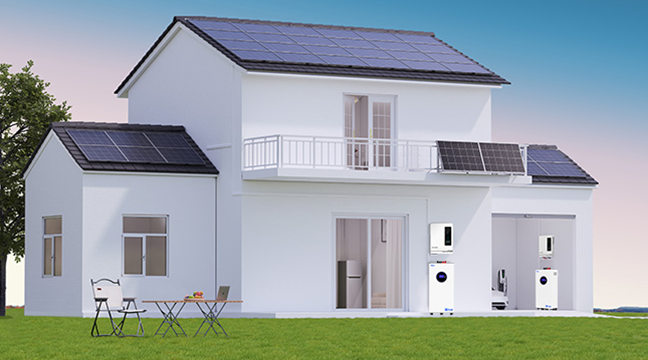

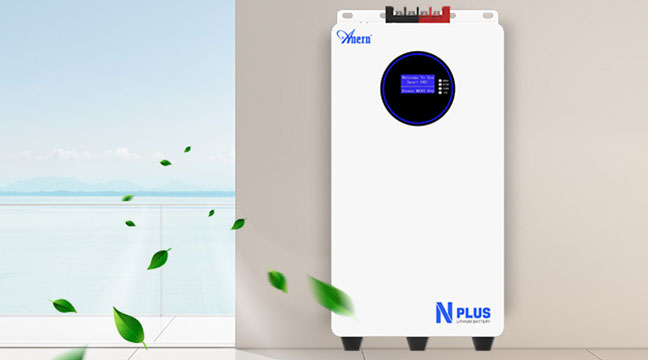

Wall Mounted Lithium Battery Installation Guide

Wall Mounted Lithium Battery Installation Guide

Choose the appropriate position
01
Choose the appropriate position

lt is forbidden to use or leave the battery module near high temperature and high heat sources, away from fire and water sources to protect the battery life and performance. Check the battery module voltage for damage before installing, and the battery module must be used in conjunction with BMS.

Electrical connection
02
Electrical connection

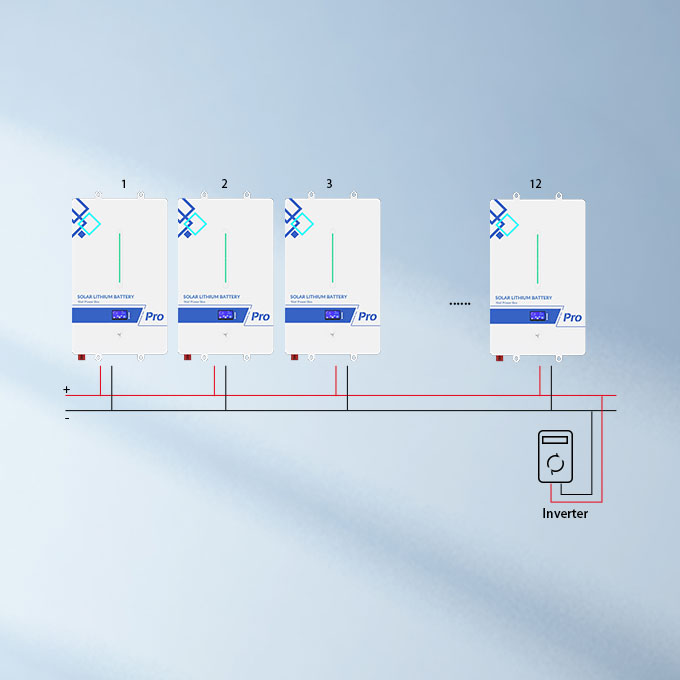

Before installing the battery module, make sure the power is off, and check whether the open circuit voltage of the battery is within the normal range. Make sure the "positive" and "negative" signs are printed on the module, and the electrical properties should be correctly determined. lt is strictly forbidden to reverse or short-circuit the battery.  Batteries of the same module, capacity and voltage should be connected in parallel. The use with serial connection is strictly prohibited.

Ventilation and temperature control
03
Ventilation and temperature control

Install the battery modules in a ventilated and dry place indoors or outdoors. The Installation and maintenance requires that, after the battery modules are installed on the wall, the poles and plugins are required to achieve frontal maintenance, avoid high temperature damage the product.

Safety protection function
04

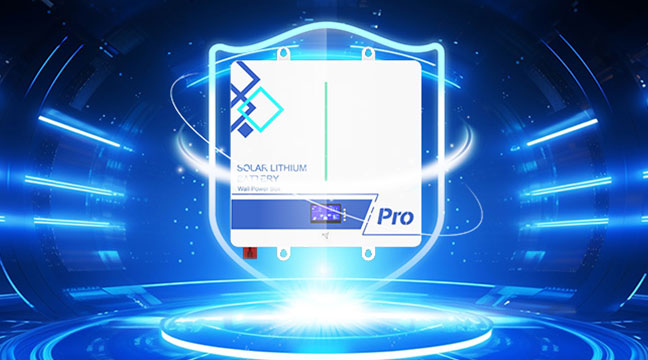

Safety protection function

The battery modules have battery management system (BMS), thermal management solution and overcharge protection.

Wall-mounted Lithium Battery Advantages

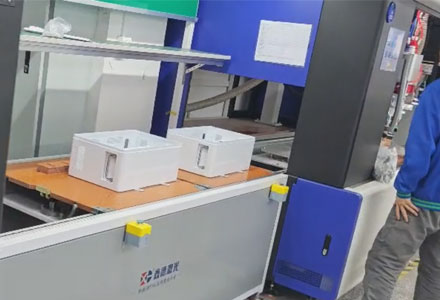

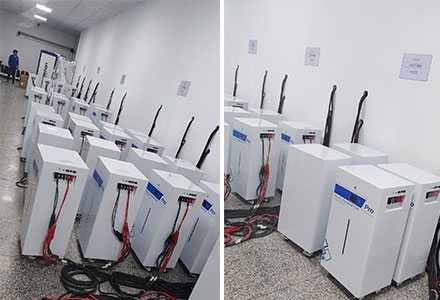

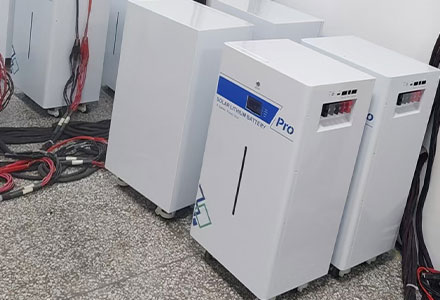

Anern Wall Mounted Lithium Battery Factory

Anern has a professional automated solar battery factory and introduces advanced automated production equipment. All of our wall-mounted solar batteries have passed ISO9001, CE, ROHS, TUV, and other certifications, and the quality meets international standards. Anern has a professional R&D team to customize exclusive solar energy production solutions for each customer.
