Anern, with 16 years of experience in the energy industry, from solar systems to solar accessories, from indoor LED lighting to outdoor solar lighting, we are one of the sources to meet your diverse needs.
Anern has 16 years of experience in solar lighting and solar product manufacturing. Anern is headquartered in Guangzhou. With a production base of 7,000 square meters, our company has an R&D team of more than 100 people.
AN-HYI is Anern's new IP65 single-phase hybrid inverter, which can use the electricity generated by solar energy to meet household electricity needs and charge the backup battery at the same time. If there is excess electricity, it can also be fed into the power grid, truly realizing the high-efficiency utilization of solar power generation. The self-developed monitoring system allows users to set the inverter function and view the specific power generation situation through the touch display, and can also remotely monitor the operation of the solar system through the WiFi module.
| AN-HYI-S6000 | AN-HYI-S8000 | AN-HYI-S10000 | AN-HYI-S12000 | |
| Phase | 1-phase in/1-phase out | 1-phase in/1-phase out | 1-phase in/1-phase out | 1-phase in/1-phase out |
| Maximum PV Input Power | 9000W | 13500W | 16200W | 16200W |
| Rated Output Power | 6000W | 8000W | 10000W | 12000W |
| MPPT Voltage Range | 50-450Vdc | 50-450Vdc | 50-450Vdc | 50-450Vdc |
| Number of MPPT Trackers/Maximum Input Current | 2/18A | 2/18A+36A | 2/18A+36A | 2/18A+36A |
| Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC |
| Acceptable Input Voltage Range | 90-280VAC | 90-280 VAC | 90-280 VAC | 90-280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) |
| Maximum AC Input Current | 40A | 50A | 60A | 70A |
| Nominal DC Voltage | 48Vdc | 48Vdc | 48Vdc | 48Vdc |
| Maximum Solar Charging Current | 135A | 190A | 220A | 250A |
| Maximum AC Charging Current | 135A | 190A | 220A | 250A |
| Maximum Charging Current | 135A | 190A | 220A | 250A |
| DimensionDxWxH (mm) | 500x483x235.5 | 500x483x235.5 | 600x483x260 | 600x483x260 |
Supports parallel operation of up to 9 units, enhancing the scalability and flexibility of the system.
Built-in RS485 communication port for communication with the battery management system (BMS) to achieve real-time monitoring and management of battery status.
The built-in CT function can accurately measure current to ensure the safe operation of the power system.

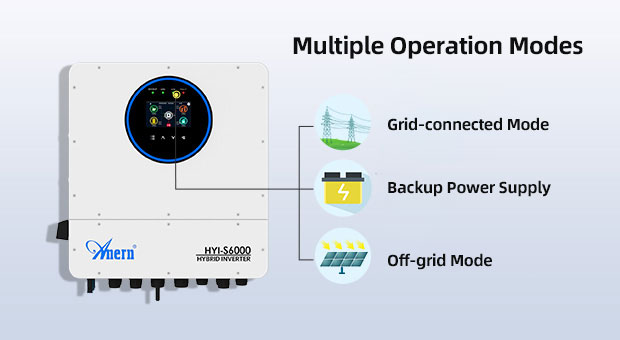

It provides a variety of programmable operation modes, including grid-connected mode, off-grid mode and grid-connected mode with backup power supply, to meet the needs of different application scenarios.
Equipped with dual output ports, it can intelligently manage the load to ensure the stability and efficiency of power supply. Supports two independent AC power inputs and can automatically switch.

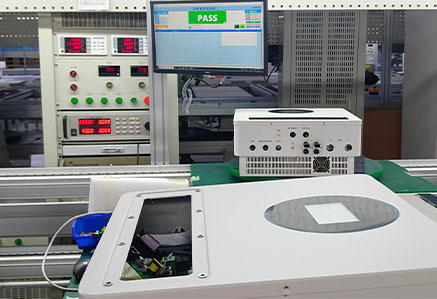

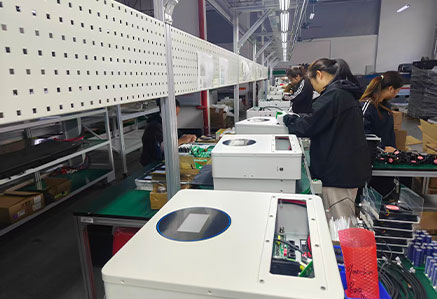

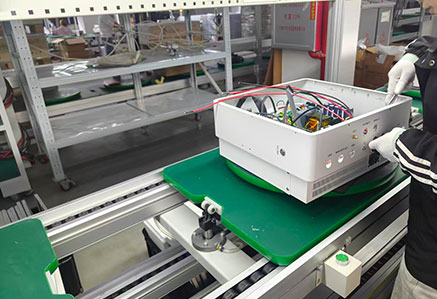

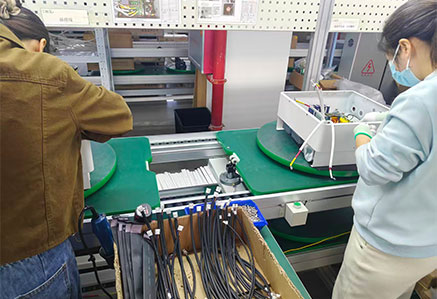

Anern single-phase hybrid inverter factory focuses on the research, development, production and sales of high-efficiency energy conversion equipment that integrates photovoltaic inverters, battery management and grid interaction functions, mainly for home energy storage and industrial and commercial distributed energy scenarios. The factory adopts automated production lines and strict international certification to ensure IP65 protection level and high reliability. The products cover more than 200 countries around the world and are used in home energy storage, microgrids and emergency backup power systems, helping global energy transformation and sustainable development with high cost performance and flexible adaptability.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
