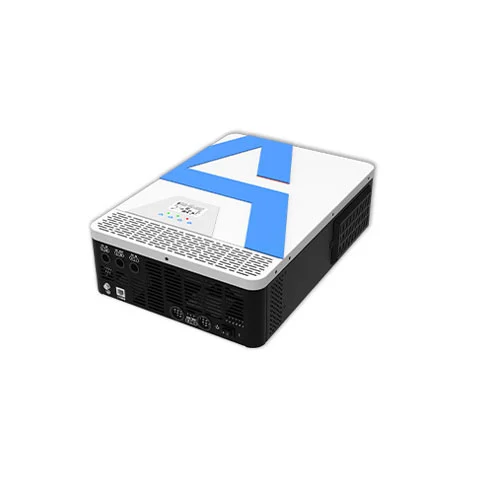

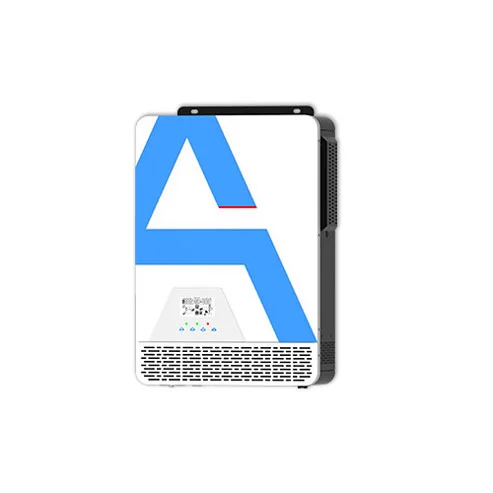

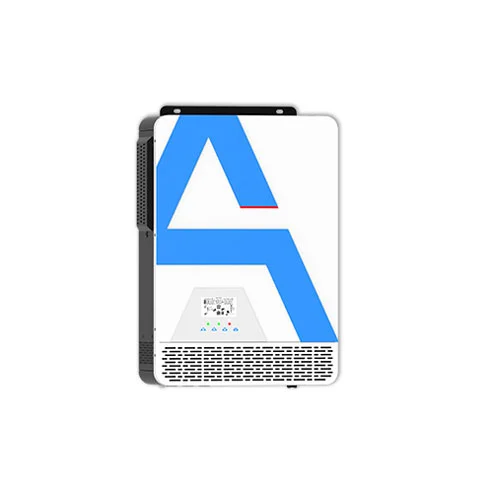

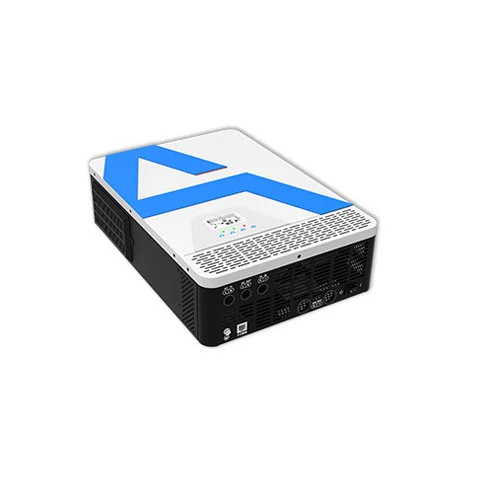

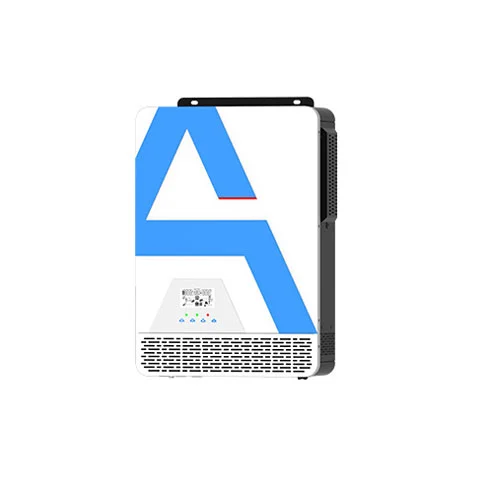

The AN-SCI02 Pro Series Off-Grid Hybrid Solar Inverter is a highly efficient pure sine wave inverter designed for off-grid applications that can periodically charge municipal power. The built-in MPPT controller monitors the solar cell output in real time, intelligently adjusts charging, and extends battery life. This inverter has a wide range of applications and can be used as the preferred solution for solar power generation systems and outdoor power supplies to meet the power needs in these environments.
| Model | AN-SCI-PRO-2000 | AN-SCI-PRO-3200 |
| Rated Power | 2000VA/2000W | 3200VA/3200W |
| AC Input | ||
| AC Input Voltage | 230VAC | 230VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) |
| AC Output | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | 230VAC ± 5% |
| Surge Power | Surge Power | 6400VA |
| Waveform | Pure sine wave | Pure sine wave |
| Battery & AC Charger | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 33VDC |
Maximum AC Charge Current | 80A | 80A |
| Solar Charger | ||
| Maximum PV Array Power | 2000W | 3200W |
Maximum PV Array Open Circuit Voltage | 150VDC | 150VDC |
| Maximum Solar Charging Current | 60A | 60A |
| Dimension (mm) | 416*291*116mm | 416*291*116mm |
| Communication interface | WIFI | WIFI |
| Operating Temperature | –10°C - 50°C | –10°C - 50°C |
| Storage Temperature | –15°C - 60°C | –15°C - 60°C |

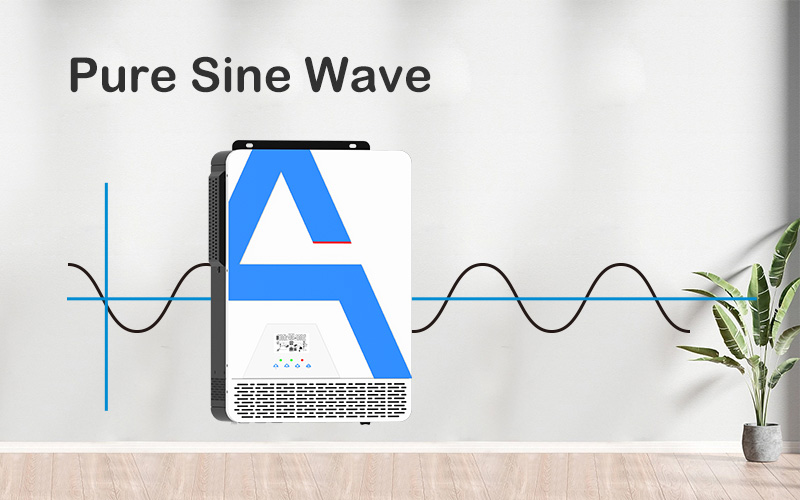

The output waveform is purer, the power factor is higher, the energy loss is small, it is more load-friendly, and reduces interference with other electronic equipment.

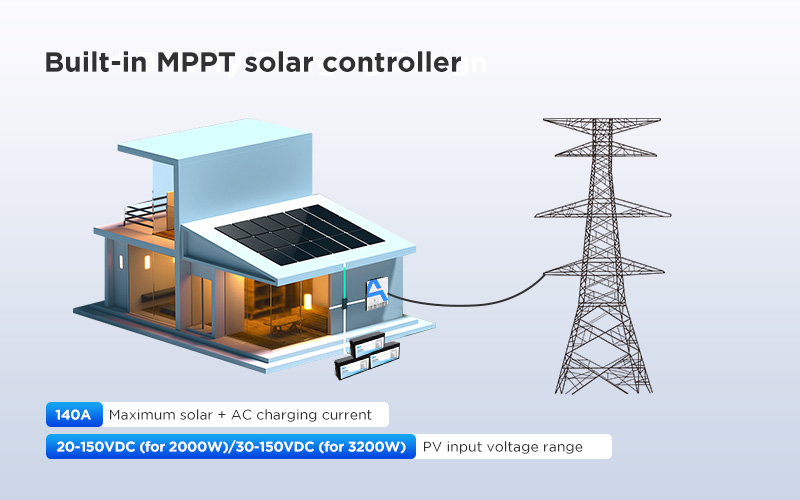

Maximum solar + AC charging current 140A;
PV input voltage range 20-150VDC (for 2000W), 30-150VDC (for 3200W);

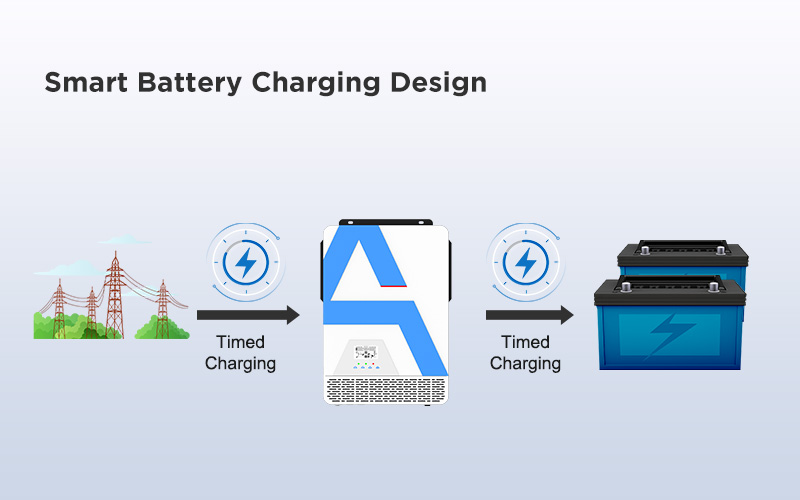

Intelligent battery charging design to maximize battery life;
It has a timed charging mode. According to the electricity prices in different regions and time periods, users can set the mains electricity timed charging, which can save users' electricity bills to a great extent.

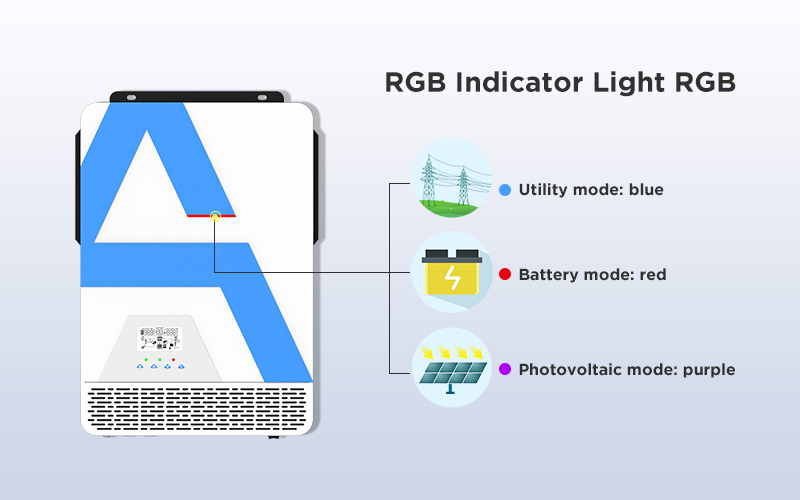

RGB lights are suitable for different working modes
Automatically switch between different working modes
Battery mode: red;
Utility mode: blue;
Photovoltaic mode: purple;

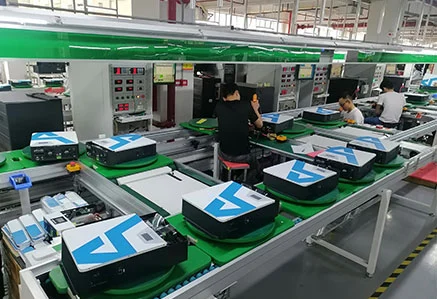

Anern off-grid parallel solar inverter factory is committed to providing reliable power solutions for areas without power grid. It has advanced production equipment and technical team to ensure product quality and performance. Our inverters have superior conversion efficiency, adapt to various harsh environments, and are widely used in commercial and industrial fields. Through continuous innovation and strict quality control, we are committed to providing customers with efficient, stable and clean energy solutions and promoting the development of renewable energy.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.

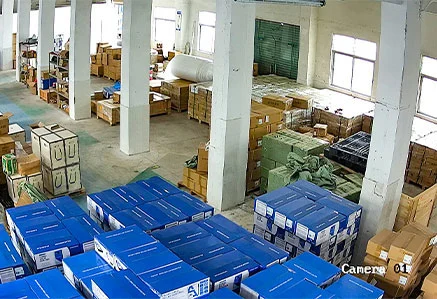

Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
