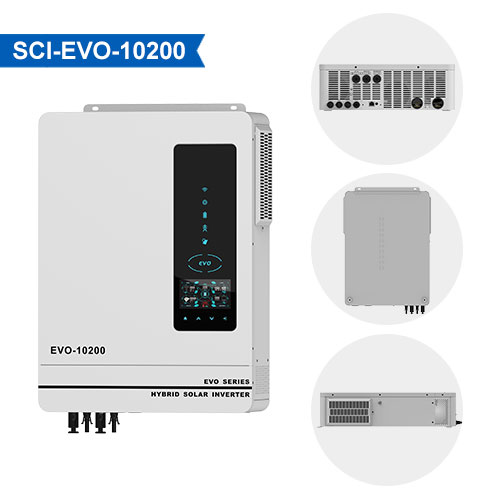

Model | SCI-EVO-10200 | ||||
Rated Power | 10200W | ||||
Maximum PV Input Power | 10800W | ||||
Dimension: D x W x H (mm) | 530*390*130mm | ||||
Net Weight (kgs) | 14.5kg | ||||

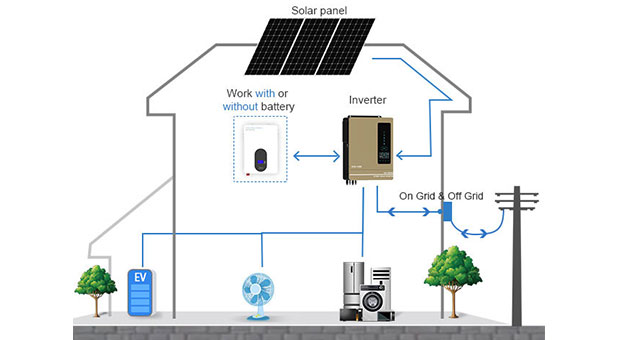

Grid-Tied Operation | |||||
Number of MPPT Trackers/Maximum Input Current | 2/18A | ||||
Output Voltage Range | 195.5-253VAC | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||
MPPT Voltage Range | 90-450VDC | ||||

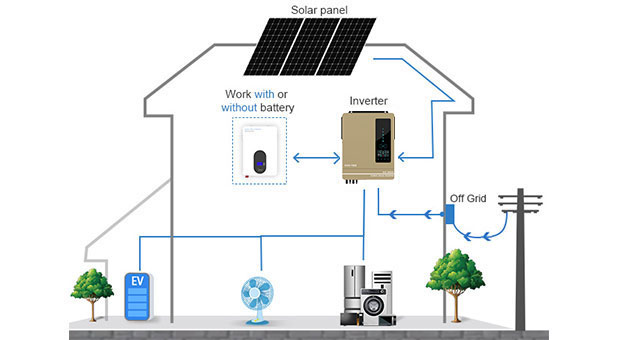

Off-Grid Operation | |||||
Surge Power | 20400W | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||
Acceptable Input Voltage Range | 90-280VAC / 170-280VAC | ||||
Nominal Operating Frequency | 50/60Hz |
Dual PV inputs & dual AC outputs.
Pure sine wave solar inverter.
High PV input voltage range(90-450VDC).

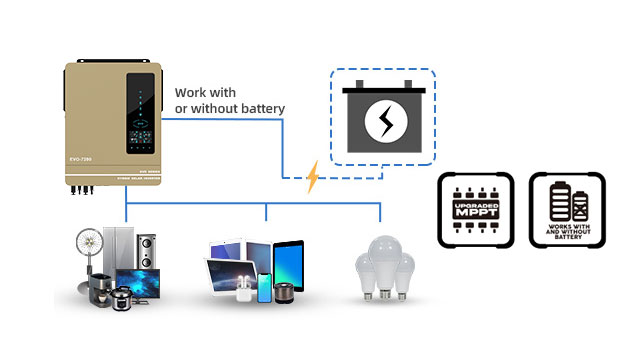

Built-in lithium battery automatic activation.
Bulit-in MPPT solar controller.
Built-in anti-dusk kit for harsh environment.
Smart battery charge design to optimize battery life.
Different colors indicate different working states, which can monitor the operation status.
WIFI available for IOS and Android.
Anern has a professional automated factory and introduces advanced automated production equipment. All of our off grid hybrid inverters have passed ISO9001, CE, ROHS, TUV, and other certifications, and the quality meets international standards. As one of the leading hybrid solar inverter suppliers in China, Anern has a professional R&D team to customize exclusive solar energy solutions for each customer.
Focus on providing customers with one-to-one services, and one-stop solar system solutions.
Anern has set up a professional R&D team, 70% of the products are exclusively designed.
Anern has cooperated with customers in more than 200+ countries regions around the world, and is a reliable supplier for customers.
Anern factory covers an area of more than 30,000 square meters, and the supply capacity can fully meet any needs of customers.
